Server Rack Air Conditioner Network Cabinet Precision Air Conditioner
Advanced Cooling Solution for :
Sever Rack , Server Cabinet , Network Rack , Network Cabinet ,Wallmount Rack,Server Enclosures Cabinets,Data Room
Cooling Capacity :
4.5kW,15.9kW,31.2 kW
Features:
Simlar dimension as a server , EK Server Rack Air Conditioner is easily installed in any server rack ;

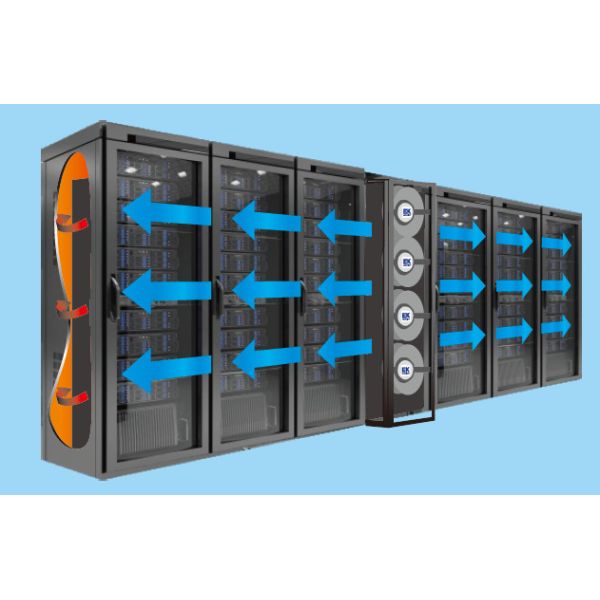

Hot air from server was cooled by EK Server Rack Air Conditioner directly , improved the energy efficiency
Cold air circuites in Rack , decrease the cold lose ;
Modular design , provides cooling solution for group racks .
World Famous Brand : EBM EC fan,SANYO DC inverter Compressor ,JOHNSON Motorized Water valve ,etc
Scalable design : EK Server Rack Air Conditioner can be inserted into a cabinet like a server,which minimizes the impact on layout of the data center without any improving floor or Ceiling.The layout is flexible and simple,and the installation is efficient.
Specifications:
| Model | | EKMC04 | EKMC15 | EKMC30 |
| Total Cooling Capacity(Max. Air Flow) | kW | 4.5 | 15.9 | 31.2 |
| Total Cooling Capacity(Rated Air Flow) | kW | 4.2 | 14.0 | 28.8 |
| Fan Qty. | No. | 1 | 1 | 2 |
| Rated Air Flow | m3/h | 750 | 2,400 | 5,450 |
| Power Supply | -- | 220V～/50Hz |
| Max. Current (Indoor Unit & Outdoor Unit) | A | 8.0 | 28.0 | 55.0 |
| Coil Material | -- | Copper Pipe/Aluminum Fins |
| Refrigerant | -- | R410A |
| Liquid /Gas Pipe Size | mm | 9.52/12.7 | 9.52/15.88 | 9.52/ 15.88 |
| Condensate Pump Pipe Size( Optional ) | -- | -- | 6mm | 6mm |
| Indoor Unit Operating Weight | kg | 26 | 75 | 100 |
| Indoor Unit Dimension(H×W×D) | mm | 176 x 439x 878 | 530 x 440 x903 | 930 x 440 x903 |
| Outdoor Unit Model | -- | EKMC04A1W | EKRV050B1 | 2*EKRV050B1 |
| Max. Current | A | 6.5 | 24.9 | 24.9 |
| Power Supply | -- | 220V～/50Hz |
| Weight | kg | 48 | 115 | 2*115 |
| Dimension (W×D×H) | mm | 856×296×617 | 900×350×1160 | 900×350×1160 |
